FRP/GRP Cable Management System

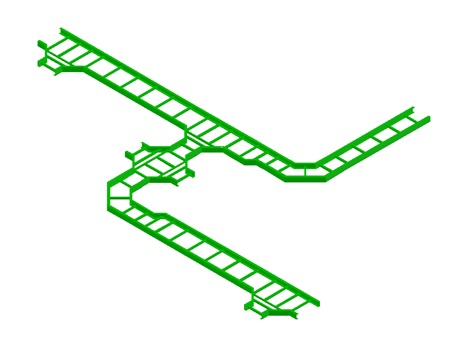

1) FRP Ladder type cable tray

FRP/GRP ladder type cable tray generally used for heavy load supporting cable. It can be assembled to different types of pultruded section, side runner and rung section.

Description	FRP Perforated Cable Tray	FRP Ladder Cable Tray
Types of Glass	ECR Bprpm Free	ECR Boron Free
Resin	Polyester/Ishophthalic/Vinaylester	Polyester/Ishophthalic/Vinaylester
Standard Length	3 MTR & 6 MTR	3 MTR
Width	50 mm - 300 mm	150 mm 900 mm
Rung Section	Not Required	300 mm
Rung Section Space	Not Required	FRP Hollow Square Tube
Coupler plate	FRP/GRP	FRP/GRP
Angle of Bend	45', 60', 90'	45', 60' 90'
Bend Radius	300 mm, 600 mm	300 mm, 600 mm
FR Grade	IS : 6746	IS : 6746
Colour	Gray / Yellow	Gray / Yellow

Resin Selection Chart

Resin Type	Resin Base	Description
Type I	Isoththalic Polyester	Industrial Grade Corrosion resistance in acidic environment
Typ I-FR	Isoththalic Polyester Fire Retardant	Industrial Grade Corrosion resistance & fire retardant
Type V	Vinyl Ester	Superior Corrosion resistance
Type V-FR	Vinyl Ester Fire Retardant	Superior Corrosion resistance & fire retardant

Accessories

Accessories are very important part of fixing & Installation of cable tray. According to that we design different types of clamp & coupler plate.

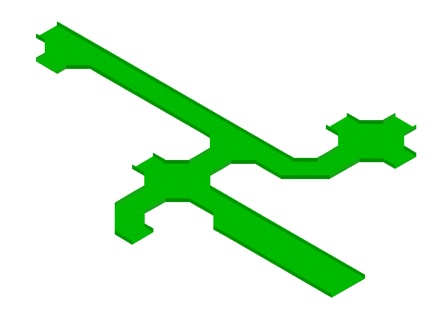

2) FRP Perforated cable tray

CPC FRP/GRP Perforated Cable Tray are in high demand due to usage of high quality material which enhances life of product in all weather conditions, these technically advanced products are specially designed to satisfy requirements of our esteemed clients.

Description	FRP Perforated Cable Tray	FRP Ladder Cable Tray
Types of Glass	ECR Bprpm Free	ECR Boron Free
Resin	Polyester/Ishophthalic/Vinaylester	Polyester/Ishophthalic/Vinaylester
Standard Length	3 MTR & 6 MTR	3 MTR
Width	50 mm - 300 mm	150 mm 900 mm
Rung Section	Not Required	300 mm
Rung Section Space	Not Required	FRP Hollow Square Tube
Coupler plate	FRP/GRP	FRP/GRP
Angle of Bend	45', 60', 90'	45', 60' 90'
Bend Radius	300 mm, 600 mm	300 mm, 600 mm
FR Grade	IS : 6746	IS : 6746
Colour	Gray / Yellow	Gray / Yellow

Resin Selection Chart

Resin Type	Resin Base	Description
Type I	Isoththalic Polyester	Industrial Grade Corrosion resistance in acidic environment
Typ I-FR	Isoththalic Polyester Fire Retardant	Industrial Grade Corrosion resistance & fire retardant
Type V	Vinyl Ester	Superior Corrosion resistance
Type V-FR	Vinyl Ester Fire Retardant	Superior Corrosion resistance & fire retardant

Accessories

Accessories are very important part of fixing & Installation of cable tray. According to that we design different types of clamp & coupler plate.
